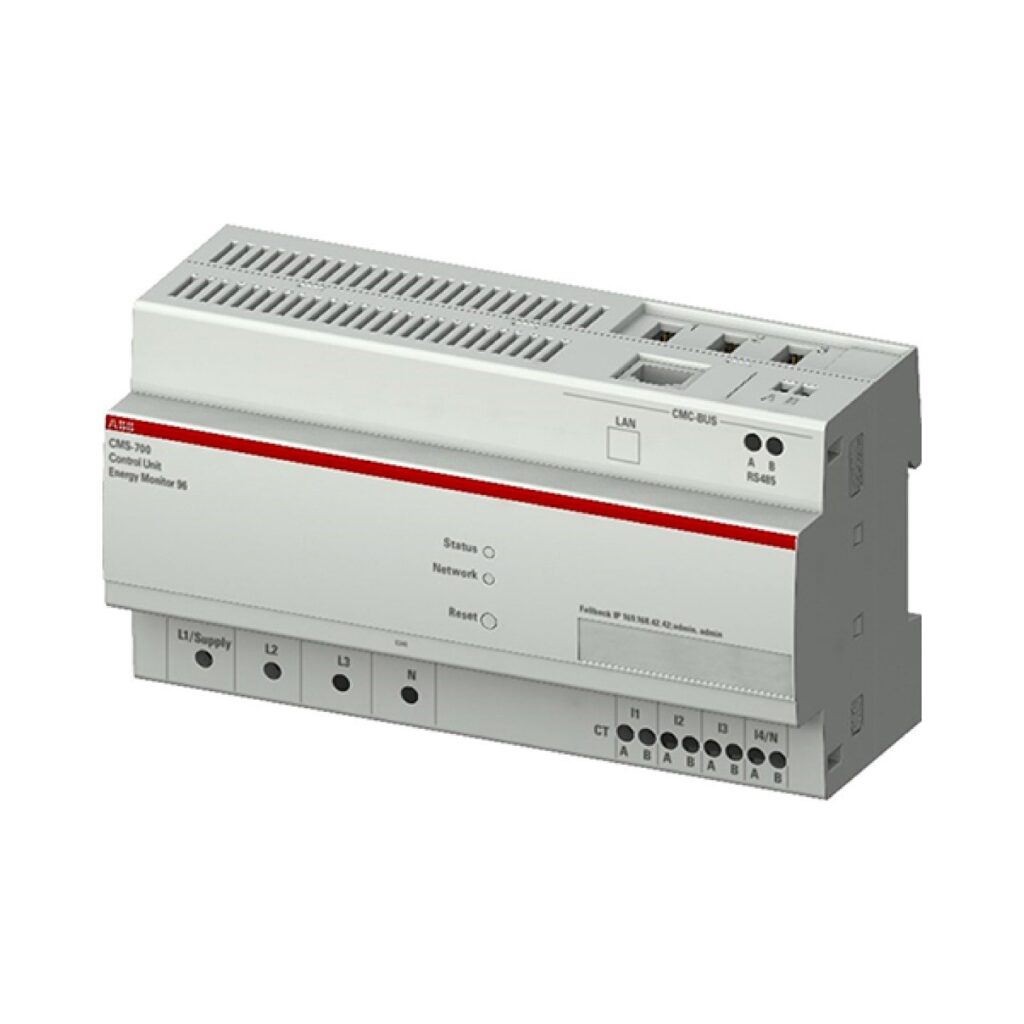

ABB Circuit Monitoring Systems


The ABB Brand The Circuit Monitoring System (CMS) is an ultra-compact, high-performance multichannel measurement system designed for both AC and DC branch monitoring. It offers a comprehensive solution for tracking electrical parameters within distribution panels, making it an essential tool for power monitoring and energy efficiency analysis in buildings and critical power applications.

Key Benefits

Clear Visibility of Energy Consumption: Gain detailed insights into energy usage at the branch level, allowing for more precise energy management and optimization.

Easy Retrofitting and Upgrades: The system is designed for seamless integration into existing setups, facilitating straightforward upgrades and retrofitting without extensive downtime or modifications.

Maximum Reliability and Security: With advanced encryption techniques, the CMS ensures that your data remains secure and reliable, providing peace of mind in all monitoring applications.

Simplified Installation and Commissioning: The user-friendly design of the CMS simplifies both installation and commissioning processes, saving time and reducing complexity.

Universal Sensor Compatibility: One sensor is versatile enough to handle all types of currents, streamlining inventory management and maintenance.


Dual Unit Options: Choose between the CMS-600 and CMS-700 units based on your specific application needs, ensuring optimal performance and functionality.

Extensive Sensor Connectivity: Each bus interface can support up to 96 sensors, providing ample capacity for extensive monitoring requirements.

Flexible Sensor Connection: All sensors connect to the control unit via a flexible ribbon cable and insulation-piercing connectors, enhancing ease of installation and reliability.

Unique Sensor Identification: Each sensor is assigned a unique ID through the Control Unit, ensuring accurate tracking and management of each measurement point.

Advanced Serial Interfaces: The system supports multiple serial interfaces including RS485 (Modbus RTU), LAN (TCP/IP and Modbus TCP), and SNMP v1/v2/v3 with encryption, ensuring robust and versatile communication options.


Industrial Control Panels: Ideal for monitoring and managing electrical parameters in industrial control environments, enhancing operational efficiency and safety.

Power Distribution Panels: Perfect for power distribution panels, offering precise monitoring and analysis to optimize power usage and improve energy efficiency.

General Industrial Applications: Suitable for a wide range of industrial applications, providing a reliable and versatile solution for electrical parameter monitoring and management.

The ABB Circuit Monitoring System is a powerful, adaptable, and secure solution for all your branch monitoring needs, ensuring optimal performance, energy efficiency, and reliability in various industrial and critical power applications.
