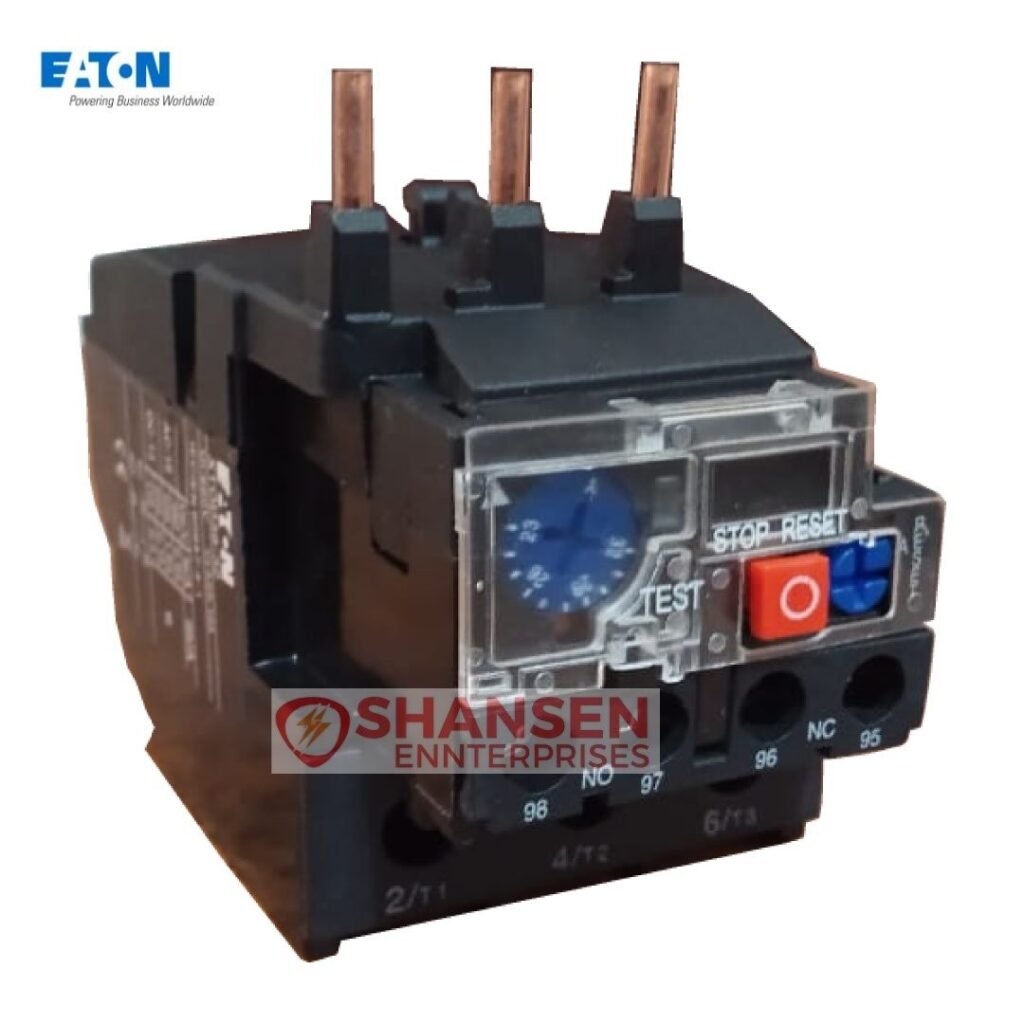

Eaton XTOD38-32 Thermal Overload Relay

Eaton XTOD38-32 Thermal Overload Relay (CMD00701) – Reliable Motor Protection for Industrial Applications

Looking for dependable protection for your electric motors? The Eaton XTOD38‑32 Thermal Overload Relay delivers performance, flexibility, and compliance. With an adjustable current range of 23 A to 32 A, phase-loss protection, and a dual-contact auxiliary setup, it integrates easily with Eaton XTCD contactors—ideal for various motor-driven industrial setups.

Key Features at a Glance

• Current Setting Range: 23 A to 32 A (adjustable)

• Auxiliary Contacts: 1 NO + 1 NC

• Reset Options: Manual or automatic

• Trip Mechanism: Trip-free for safety

• Phase-Failure Protection: Built-in

• Test/Off and Reset Buttons: Onboard for convenience

• Mounting: Direct on XTCD contactor or separately with adaptor

• Compliance: IEC 60947-4-1, CE, RoHS

Why Choose This Product

The XTOD38‑32 combines Eaton’s engineering reliability with essential protective features for motor safety. Whether you run HVAC, pumping, or conveyance systems, this relay ensures that your motor is safeguarded from overload and phase failures. Its user-selectable reset, onboard test/reset buttons, and dual auxiliary contacts make installation and maintenance user-friendly, with no compromises on protection.

Ideal For

• Manufacturing units

• Water treatment plants

• HVAC systems

• Conveyor and automation lines

• Pumping stations

• Building management systems

Get a Quick WhatsApp Quote!

As an Authorized Channel Partner of ABB and Eaton, Shansen Enterprises guarantees 100% authentic products and customer satisfaction. Message us on WhatsApp for best pricing, same-day response, and expert support.

Frequently Asked Questions

Q1: Can I use the XTOD38‑32 with other brands of contactors?
It’s specifically designed for use with Eaton XTCD contactors for best compatibility.

Q2: Does it include phase-loss protection?
Yes, it has built-in phase-failure detection for added safety.

Q3: Can I switch between manual and automatic reset?
Absolutely, the relay allows selectable reset modes.
