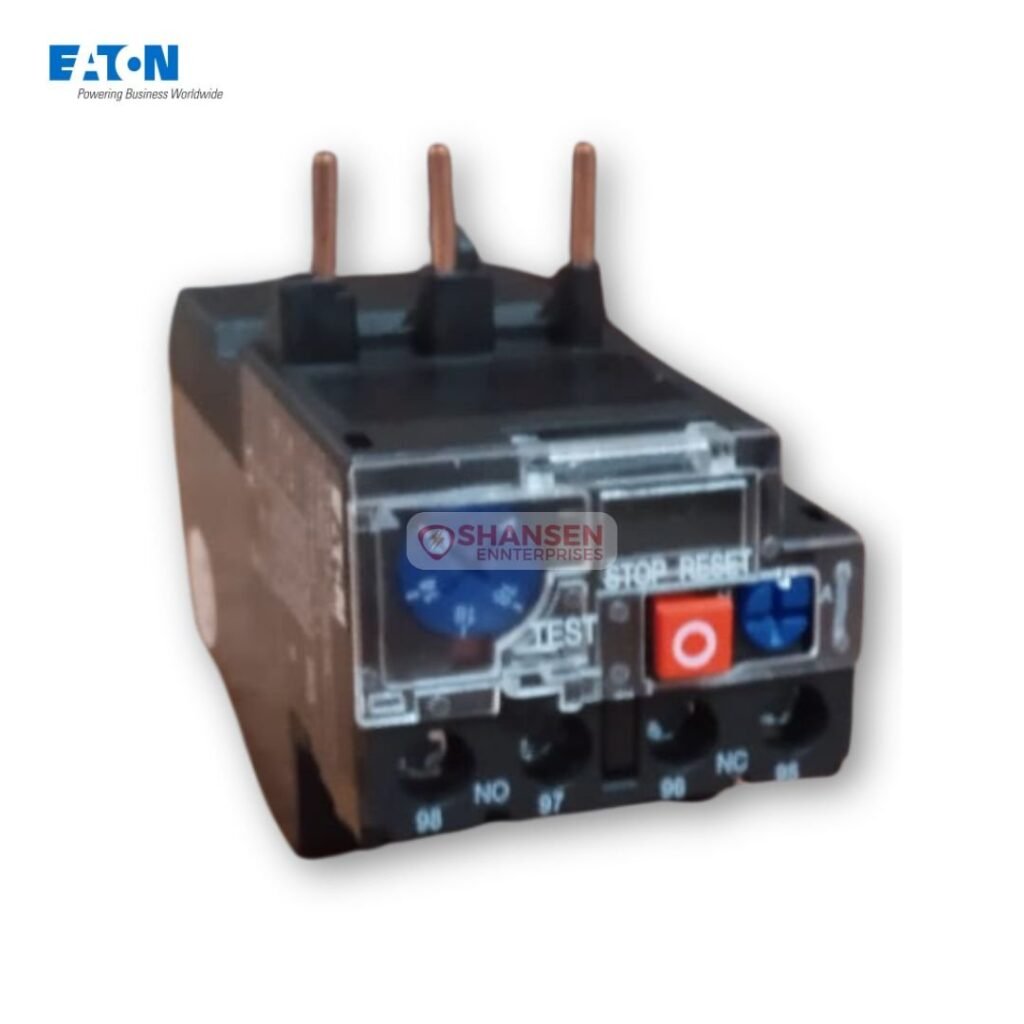

Eaton XTOD18‑18 Thermal Overload Relay

Eaton XTOD18‑18 Thermal Overload Relay – Reliable Motor Protection (12–18 A Range)

The Eaton XTOD18‑18 (Article No.: CMD00699) is a high-performance thermal overload relay designed for motor protection in the 12 – 18 A range. With its adjustable current settings, integrated phase-loss sensitivity, and compatibility with Eaton XTCD series contactors, this compact device ensures seamless motor safety in industrial setups. Designed to meet IEC, CE, and CCC standards, it’s built for reliability and long-term performance.

Key Features at a Glance

• Current Range: 12 A to 18 A (adjustable)

• Auxiliary Contacts: 1 NO + 1 NC built-in

• Phase-Loss Protection: Yes (built-in sensitivity)

• Trip Class: 10A (thermal-magnetic protection)

• Mounting Options: Direct on XTCD contactors or DIN-rail/panel with adapter

• Reset Modes: Manual or Automatic (via push-button)

• Standards Compliant: IEC/EN 60947-4-1, GB/T 14048.4, CE, CCC certified

• Compatible Contactors: XTCD18-11, XTCD25-11, XTCD32-11, XTCD38-11

Why Choose This Product

If you're managing industrial motors, the Eaton XTOD18‑18 provides precise and reliable overload protection in the 12–18 A range. Its built-in phase-failure sensitivity offers an extra layer of safety, making it a smart pick for setups where equipment uptime matters. Thanks to its compatibility with Eaton D-Line XTCD contactors and optional mounting adapters, it's incredibly flexible for integration into panels or direct installations. The combination of global certifications and user-friendly reset modes makes it a dependable choice for automation professionals.

Ideal For

• Manufacturing Plants

• HVAC & Pumping Systems

• Machine Tool Panels

• Industrial Automation Panels

• Material Handling Systems

FAQs

Q1: Can the XTOD18‑18 be used without a contactor?
A: It is designed for use with XTCD contactors; standalone use is not recommended.

Q2: Is it suitable for frequent motor starts?
A: Yes, its Class 10A trip curve is ideal for standard motor starting applications.

Q3: Are adapters included for DIN-rail mounting?
A: No, DIN-rail mounting adapters are available separately as accessories.
