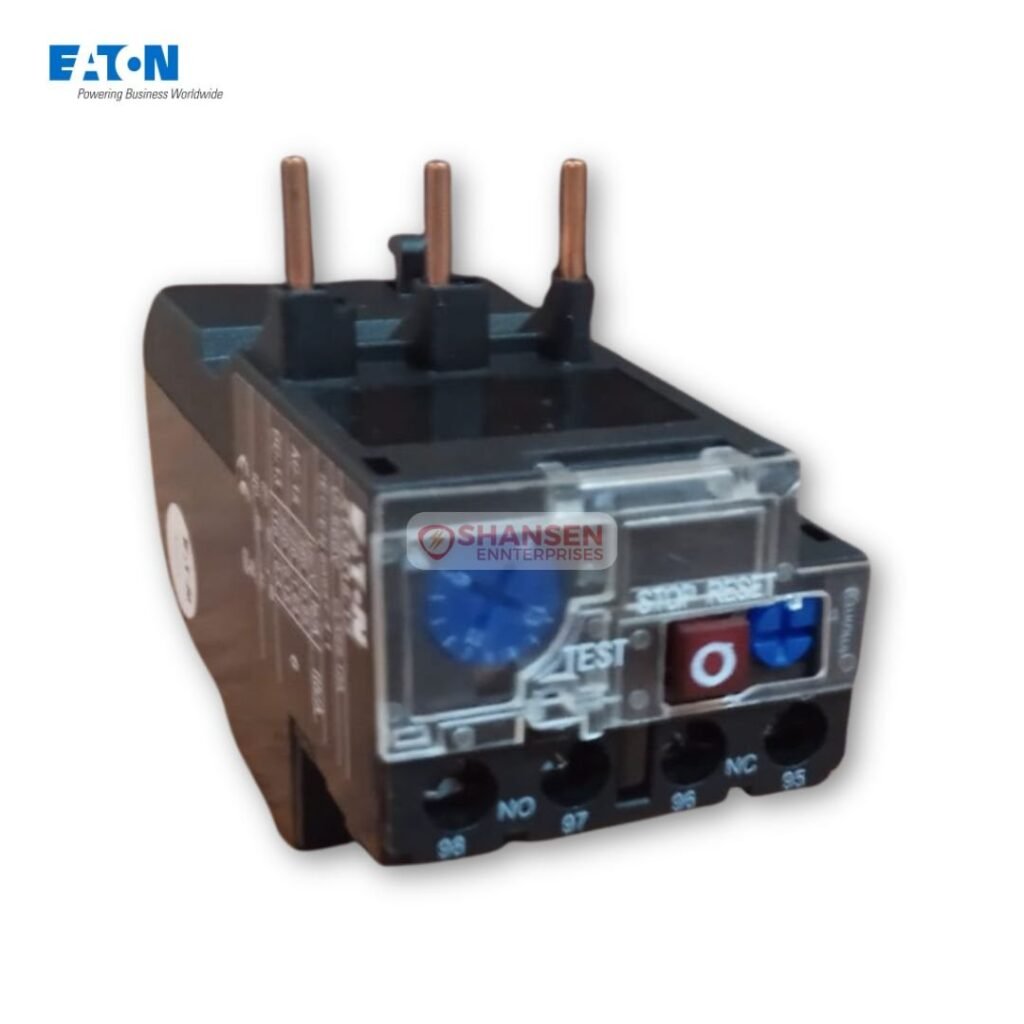

Eaton XTOD18‑13 Thermal Overload Relay

Looking for precise motor protection with a reliable, compact solution? The Eaton XTOD18‑13 thermal overload relay is purpose-built to seamlessly mount onto XTCD6–38 series contactors, offering adjustable current settings from 9A to 13A. Engineered for safety, durability, and thermal consistency, this relay is ideal for protecting your motors under varying loads and temperatures.

Key Features at a Glance

• Model: XTOD18‑13 (CMD00698)

• Current Range: Adjustable from 9 A to 13 A

• Auxiliary Contacts: 1 NO + 1 NC

• Trip Class: Class 10 thermal protection

• Mounting: Direct on XTCD6–38 series contactors

• Phase Failure Protection: Yes, sensitive to single-phase loss

• Ambient Temperature Compensation: –40 °C to +75 °C (bimetallic)

• Reset Options: Manual or automatic (selectable)

• Test Button: Integrated for functional testing

• Certifications: IEC/EN 60947‑4‑1, GB/T 14048.4, CE, CCC

Why Choose This Product

The Eaton XTOD18‑13 thermal overload relay offers dependable motor protection in a compact design, ensuring smooth integration into existing control panels. Its precision adjustment range and phase-failure sensitivity help protect motors from damage due to overcurrent or phase loss. Certified to international standards, this relay combines performance with peace of mind, making it a trustworthy solution for demanding industrial setups.

Ideal For

• Manufacturing Plants

• HVAC Systems

• Food & Beverage Processing

• Water Treatment Facilities

• Conveyor Systems

• Pumps and Compressors

• General Industrial Machinery

Shansen Enterprises is an Authorized Channel Partner of ABB & Eaton, delivering 100% genuine products and exceptional service. Tap below to get your best quote via WhatsApp — trusted by industries nationwide for accuracy and speed.

Frequently Asked Questions (FAQs)

Q1: Can this relay be used with XTCD38‑11 contactors?
Yes, it’s designed for direct mounting on XTCD6–38 series, including XTCD38‑11.

Q2: Is the reset mode configurable?
Absolutely. You can choose between manual or automatic reset using the sliding selector.

Q3: Does it work in extreme temperatures?
Yes, it features ambient temperature compensation from –40 °C to +75 °C.
