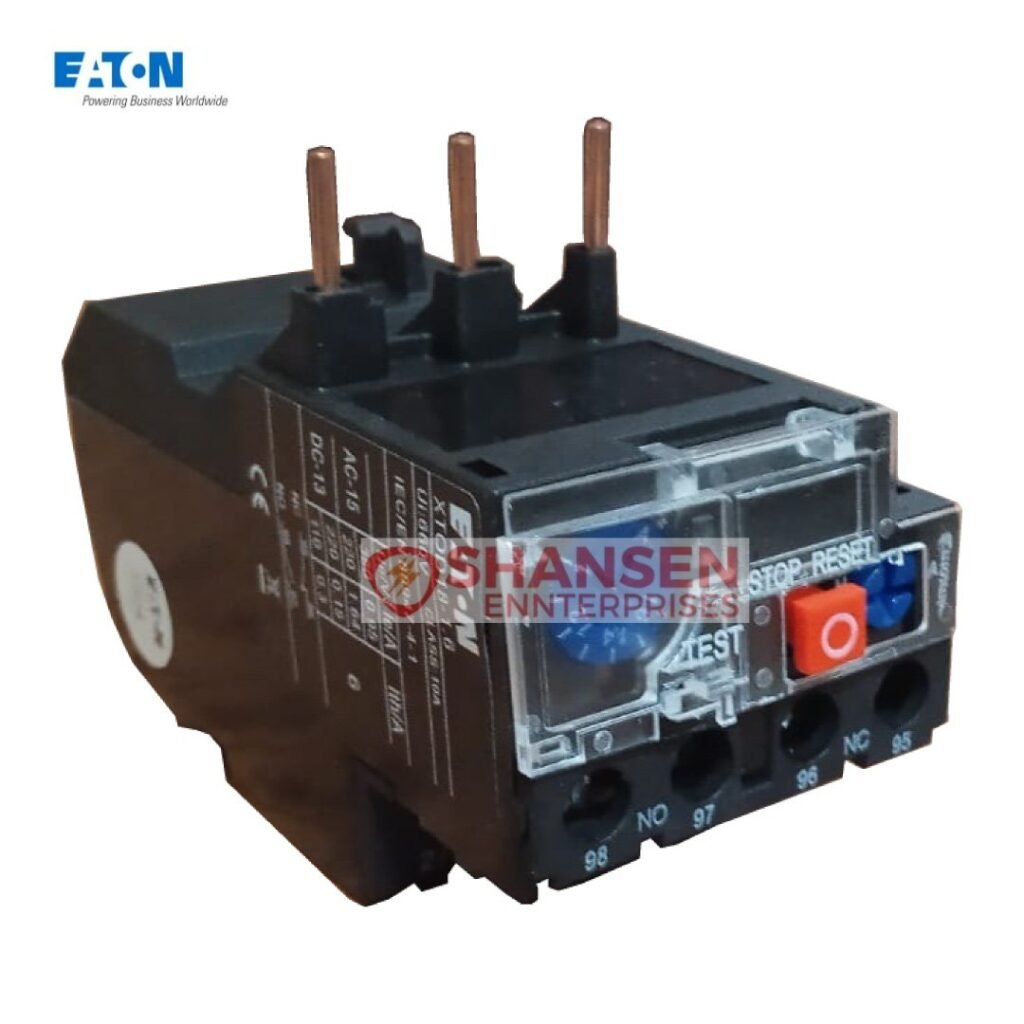

Eaton XTOD18‑1.6 Thermal Overload Relay

Looking for compact and reliable motor protection? The Eaton XTOD18‑1.6 thermal overload relay is built to work seamlessly with Eaton's XTCD contactors. With a precise current setting range of 1.0–1.6 A, this relay ensures dependable overload, phase-loss, and short trip protection for small motors. Whether you're upgrading or building new panels, this is a plug-and-play choice for compact motor starters.

Key Features at a Glance

• Adjustable Current Range: 1.0–1.6 A overload setting

• Trip Class 10: Trips within 10 seconds at 600% current

• Auxiliary Contacts: Includes 1 NO + 1 NC for signaling/tripping

• Reset Options: Manual or automatic reset configurable

• Phase-Loss Protection: Prevents damage from single-phase operation

• Mounting Flexibility: Direct to XTCD or via DIN/panel mounting

• Compact Design: Engineered for tight panels and XTCD18-11 contactors

• Compliance: Meets IEC/EN 60947‑4‑1, GB/T 14048.4, CCC, CE standards

• IP20 Protection: Suitable for standard panel applications

Why Choose This Product

The Eaton XTOD18‑1.6 thermal overload relay is a trusted solution for safeguarding motors in the 1.0–1.6 A range. Designed for seamless integration with Eaton XTCD contactors, this relay ensures rapid response in overload conditions (Class 10 trip), protects against phase loss, and offers selectable manual/auto reset. Its compact size is ideal for space-limited installations and ensures straightforward wiring. Certified to international standards, it's a professional-grade choice for industrial applications.

Ideal For:

• HVAC systems

• Pumps and compressors

• Conveyor systems

• Industrial control panels

• Machine tools

• Agricultural automation

• Packaging lines

• Small motor starter units

Shansen Enterprises is an Authorized Channel Partner of Eaton. We guarantee 100% authentic products and complete customer satisfaction. Message us on WhatsApp now to get your quote for the XTOD18‑1.6 Thermal Overload Relay (CMD00692). Fast response. Reliable service.
