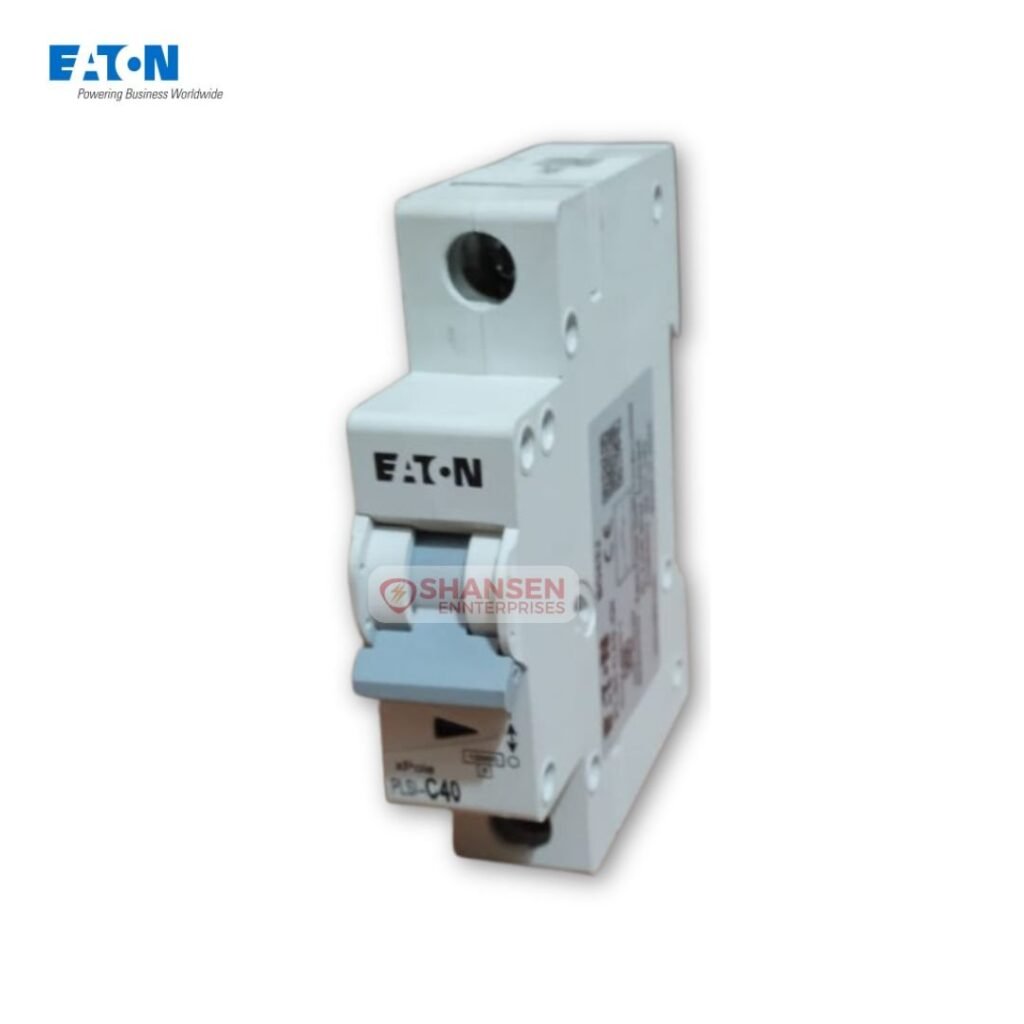

Eaton PLSI C40‑GI Miniature Circuit Breaker

Eaton PLSI C40‑GI MCB – Made for India, Built for Safety 🔧
The Eaton PLSI C40‑GI is a single‑pole, 40A C‑curve miniature circuit breaker from Eaton’s “Made for India” PLSI series, engineered for modern residential and light commercial installations. With a high 10kA breaking capacity, IP20 finger-safe housing, and thermal-magnetic protection, this MCB delivers consistent safety and reliability tailored to Indian electrical conditions.

Key Features at a Glance:

• Rated Current: 40A

• C-Curve Thermal-Magnetic Trip: 5–10x In – suitable for lighting and motor loads

• Breaking Capacity: 10kA at 240/415 VAC

• Voltage Range:

  • Operational: 240/415 VAC

  • Insulation: 660 VAC

  • Impulse Withstand: 4kV

• Trip-Free Mechanism: Cannot be reset against fault

• True Contact Indicator: Visual red/green status

• Durability:

  • Electrical life: ~4,000 operations

  • Mechanical life: ~10,000 operations

• Terminal Options: Supports 16 mm² flexible and 25 mm² solid wires

• Mounting: 35mm DIN rail, single-pole

• Ingress Protection: IP20 finger-safe

• Standards Compliant: IS/IEC 60898‑1, EN/IEC 60898‑1

Why Choose This Product:

The Eaton PLSI C40‑GI offers dependable circuit protection specifically designed for Indian conditions. Its trip-free safety design, high breaking capacity, and compact IP20 housing make it a trusted choice in both domestic and commercial environments. Backed by Eaton’s global engineering and local manufacturing, it's an ideal blend of affordability and durability.

Ideal For:

• Residential Buildings

• Light Industrial Facilities

• Commercial Offices

• Retail Spaces

• Educational Institutions

• Small Motor and HVAC Applications

📲 Request a Quote on WhatsApp!

As an Authorized Channel Partner of ABB and Eaton, Shansen Enterprises ensures 100% genuine products, backed by technical support and a trusted customer satisfaction track record. Ready to order or need a quick quote? Message us directly on WhatsApp – fast, easy, and reliable!

Frequently Asked Questions:

Q1: Is this MCB suitable for motor applications?
Yes, the C-curve and 10kA rating make it ideal for small motors and lighting loads.

Q2: Can it be mounted on a standard DIN rail?
Absolutely, it’s designed for 35mm DIN rail systems.

Q3: Does it support flexible wiring?
Yes, it supports up to 16 mm² flexible and 25 mm² solid conductors.
