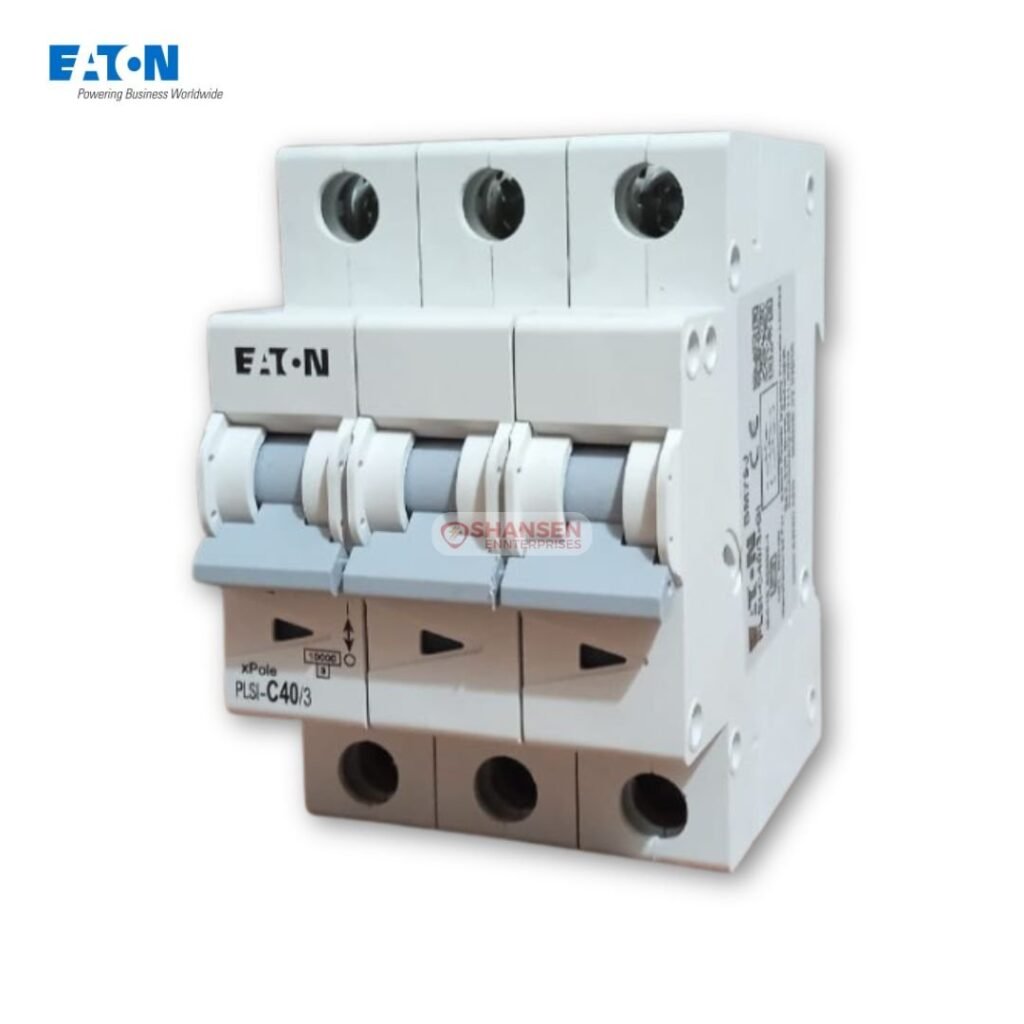

Eaton PLSI-C40/3-GI 3 Pole Miniature Circuit Breaker
Meet the Eaton PLSI-C40/3-GI, a “Made for India” three-pole miniature circuit breaker rated at 40 A. Built with a thermal-magnetic trip unit and a best-in-class 10 kA breaking capacity, it delivers fast, reliable over-current protection. Its compact 17.5 mm per-pole design and tool-free DIN-rail mounting make installation a breeze. Whether you’re equipping a home distribution board or a light-industrial feeder, the PLSI-C40/3-GI has got you covered.
Key Features at a Glance
-
10 kA breaking capacity for superior short-circuit interruption
-
Thermal-magnetic trip unit (Type C curve: trips at 5–10× In)
-
True contact position indicator (red/green)
-
Energy-limiting Class 3 to reduce let-through energy
-
Anti-weld silver-alloy contacts with 13-deion plate arc-chutes
-
Fire-retardant engineering-plastic enclosure
-
Tool-free 2-position DIN-rail clamp
-
ISI and CE certified
Why Choose This Product
The Eaton PLSI-C40/3-GI blends rugged performance with “Made for India” reliability. Its quick-break mechanism and energy-limiting technology minimize damage during faults, while the true contact indicator offers instant status checks. Built to IEC/IS standards and housed in a fire-retardant casing, it’s engineered for safety and durability—perfect for every installer and end-user who demands consistent protection.
Ideal For
-
Residential distribution boards & sub-main feeders
-
Commercial panelboards in offices & retail outlets
-
Light industrial machine control circuits
-
Any application needing fast, dependable over-current protection
WhatsApp Quote
Get your Eaton PLSI-C40/3-GI through Shansen Enterprises, your Authorized ABB & Eaton Channel Partner. Message us on WhatsApp today for a quote—and join our 100% customer-satisfaction family!
FAQs
-
What does Type C curve mean?
Type C breakers trip between 5–10× In, ideal for general-purpose loads with moderate inrush currents. -
Can this MCB be used as an isolation switch?
Yes—its trip-free design allows safe isolation under load when needed. -
What wiring sizes are supported?
It accepts flexible conductors up to 16 mm² and rigid up to 25 mm².
Meta Description (≤155 characters)
Eaton PLSI-C40/3-GI is a 40 A, 3-pole Type C MCB with 10 kA breaking capacity, ideal for India’s domestic and light-industrial applications.
Specifications
| Brand & Series | Eaton PLSI MCB (Made for India) |
| Model Code | PLSI-C40/3-GI |
| Internal Part No. | EIN-810162 |
| Poles | 3-pole (3P) |
| Rated Current (In) | 40 A |
| Rated Operational Voltage (Ue) | 240 / 415 V AC |
| Rated Insulation Voltage (Ui) | 660 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Frequency | 50 Hz |
| Breaking Capacity (Icn | 10 kA |
| Service Breaking Capacity (Ics) | 7.5 kA |
| Energy-Limiting Class | 3 |
| Mechanical Durability | 10 000 cycles |
| Electrical Durability | 4 000 cycles |
| Terminal Type | Combi-head M5 screws |
| Terminal Capacity | Flexible up to 16 mm², rigid up to 25 mm² |
| Mounting | 35 mm DIN-rail (tool-free clamp) |
| Country Of Origin | India |
