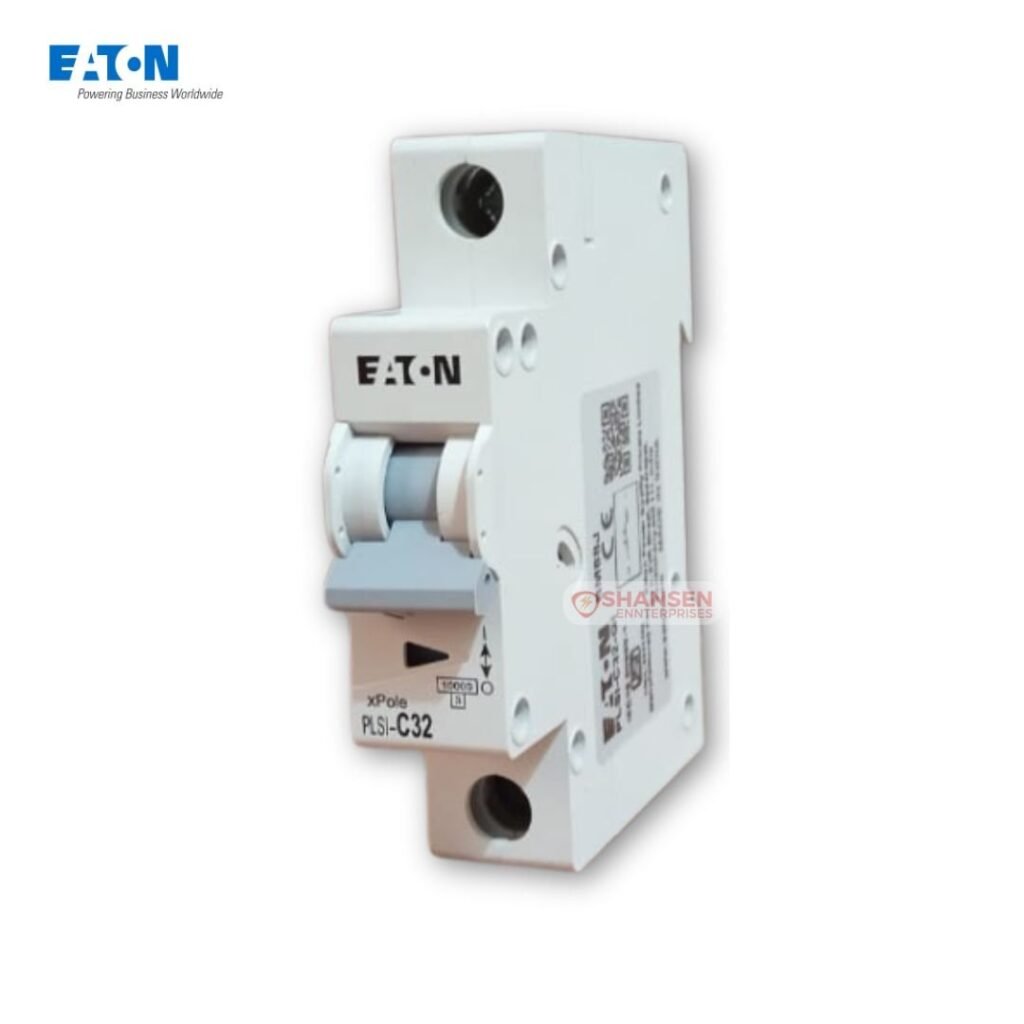

Eaton PLSI-C32-GI Miniature Circuit Breaker

Meet the Eaton PLSI-C32-GI Miniature Circuit Breaker – your go-to solution for reliable, high-performance circuit protection “Made for India.” Rated at 32 A with a robust 10 kA breaking capacity, this single-pole C-curve MCB is ISI & CE marked for global compliance. Enjoy peace of mind with a true contact position indicator, quick-break mechanism, and anti-weld silver-alloy contacts. Built to last and easy to install, it’s perfect for homes, offices, and light-industrial setups. Trust Eaton’s “Made for India” engineering for safety, durability, and affordability.

Key Features at a Glance

• 32 A rated current with C-curve thermal-magnetic trip

• 10 kA short-circuit breaking capacity (I_cn)

• Energy-limiting Class 3 rating for downstream protection

• Quick-break mechanism minimizes arcing time

• True contact position indicator (RED = ON, GREEN = OFF)

• Anti-weld silver-alloy contacts & 13-plate de-ion arc chute

• Fire-retardant engineering plastics housing

• Tool-free 2-position DIN-rail clamp (35 mm rails)

• Service breaking capacity (I_cs): 7.5 kA

• Wide ambient range: –5 °C to 50 °C, up to 95% RH

Why Choose This Product
The Eaton PLSI-C32-GI stands out for its blend of cutting-edge safety features and user-friendly design. Its Class 3 energy-limiting rating and anti-weld contacts protect sensitive downstream equipment, while the quick-break mechanism ensures fast fault clearance. Installation is a breeze with tool-free DIN-rail mounting and clear ON/OFF indicators. Backed by Eaton’s global reputation and tailored to meet Indian standards, it delivers unmatched reliability at an affordable price point.

Ideal For

• Residential branch circuit protection

• Commercial buildings and offices

• Light-industrial installations

• Retail outlets and showrooms

• Small manufacturing units

Ready to upgrade your circuit protection? Shansen Enterprises, your Authorized Channel Partner for ABB and Eaton products, is here to help! Send us a WhatsApp message now for a personalized quote. Enjoy our 100% customer satisfaction guarantee and expert support every step of the way.

FAQs

1. What does the C-curve trip characteristic mean?
   The C-curve indicates a magnetic trip at 5–10 times the rated current, ideal for circuits with moderate inrush currents like small motors and fluorescent lighting.

2. How do I install the PLSI-C32-GI on a DIN rail?
   Simply hook the top clamp onto the 35 mm rail and push the bottom clamp tool-free until it clicks. Ensure proper torque (2 Nm) on the M5 terminals.

3. Can this MCB be used in humid or dusty environments?
   Yes, it’s rated for ambient temperatures from –5 °C to 50 °C and up to 95% non-condensing RH, with IP20 finger-proof protection.
